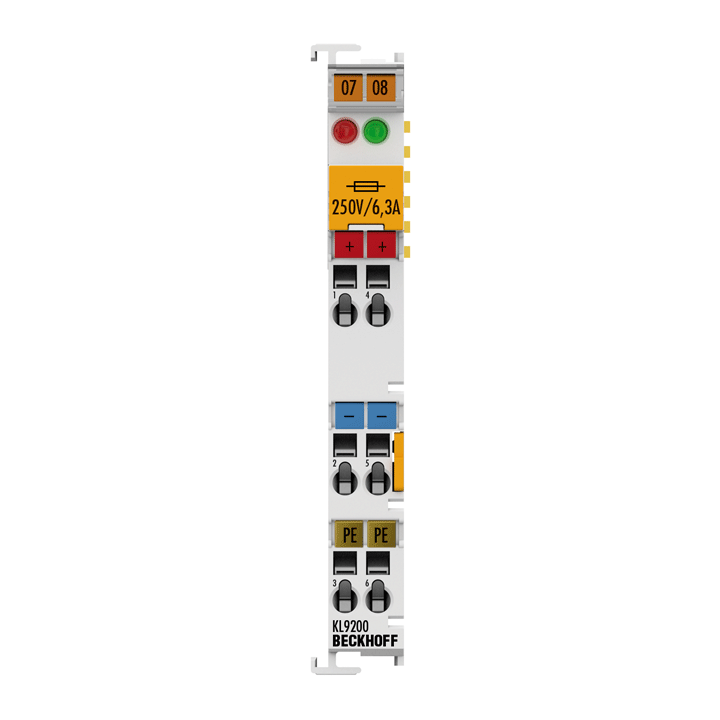

Beckhoff KL9200 Potansiyel Besleme Terminali, 24 V DC, Sigortalı
KL9200 güç besleme terminali, 24 V DC standart voltajla çeşitli potansiyel gruplarının kurulmasını mümkün kılar.
| Technical data | |
|---|---|
| Nominal voltage | 24 V DC |
| Current load | ≤ 10 A |
| Integrated fine-wire fuse | …6.3 A |
| Diagnostics | – |
| Power LED | green |
| Defect LED | red |
| Reported to K-bus | – |
| PE contact | yes |
| Shield connection | – |
| Renewed infeed | – |
| Connection facility to additional power contact | 1 |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Current consumption K-bus | – |
| Electrical isolation | yes |
| Housing width | 12 mm |
| Special features | integrated fuse |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-6pin |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 70 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
