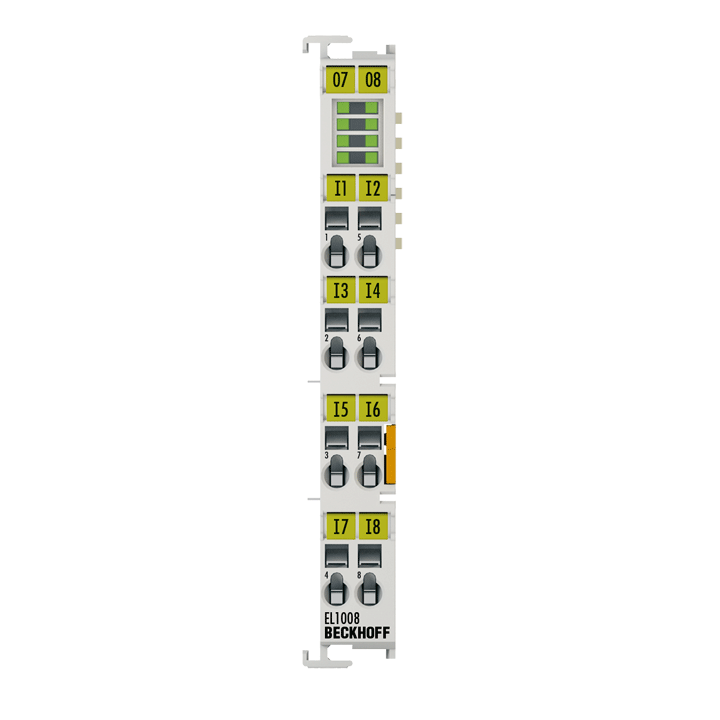

Beckhoff EL1008 8 Kanallı Dijital Giriş Terminali 24 V DC, 3 ms
0 - Yorum
Kategori
Marka
Stok Kodu
273611
Garanti Süresi
24 Ay
Fiyat
138,63 EUR + KDV
* 1.678,01 TL den başlayan taksitlerle!
6.154,96 TL
8.206,61 TL
%25
Beckhoff EL1008 8 Kanallı Dijital Giriş Terminali 24 V DC, 3 ms
EL1008 dijital giriş terminali, proses seviyesinden ikili 24 V kontrol sinyallerini alır ve bunları elektriksel olarak izole edilmiş bir formda daha yüksek seviyeli otomasyon ünitesine iletir. Her EtherCAT Terminali, sinyal durumlarını ışık yayan diyotlar aracılığıyla gösteren sekiz kanala sahiptir.
Özel özellikler:
- Giriş özelliği tipi 1/3
- 3 ms giriş filtresi sayesinde mekanik anahtarlar nedeniyle sıçrama olmaz
| Technical data | EL1008, ES1008 |
|---|---|
| Connection technology | 1-wire |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 8 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| "0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| "1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Input filter | typ. 3.0 ms |
| Distributed clocks | – |
| Current consumption power contacts | typ. 2 mA + load |
| Current consumption E-bus | typ. 90 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 8 inputs |
| Configuration | no address or configuration setting |
| Special features | standard input terminal for bouncing signals (filter 3 ms) |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, GL, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
