Beckhoff EL2004 4 Kanallı Dijital Çıkış Terminali 24 V DC, 0,5 A
0 - Yorum
Kategori
Marka
Stok Kodu
273608
Garanti Süresi
24 Ay
Fiyat
104,20 EUR + KDV
* 1.261,36 TL den başlayan taksitlerle!
4.626,68 TL
6.168,91 TL
%25
Beckhoff EL2004 4 Kanallı Dijital Çıkış Terminali 24 V DC, 0,5 A

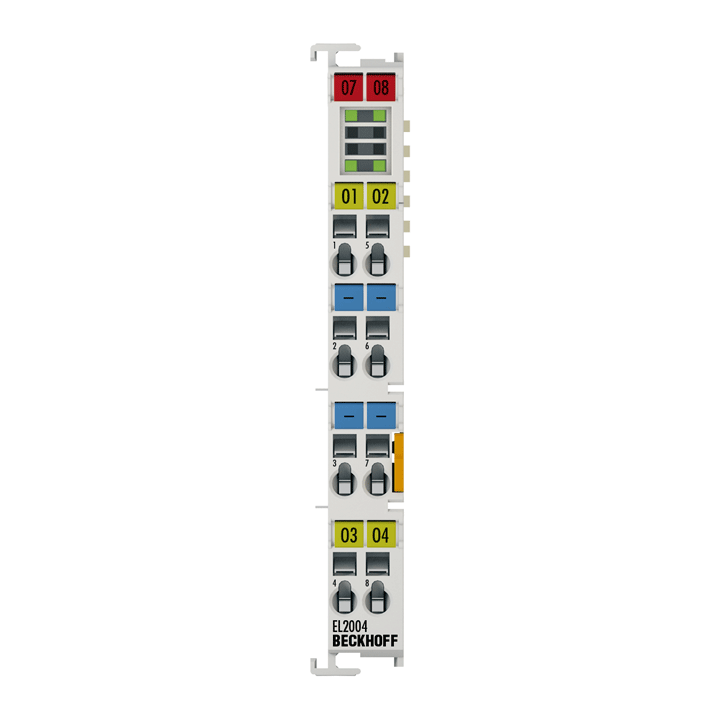

EL2004 dijital çıkış terminali, otomasyon cihazından gelen ikili 24 V DC kontrol sinyallerini elektriksel izolasyonla proses seviyesinde aktüatörlere bağlar. EtherCAT Terminali, sinyal durumunu ışık yayan diyotlar aracılığıyla gösteren dört kanal içerir.
Özel özellikler:
- Farklı yük türlerinin bağlanması mümkündür (omik, endüktif, lamba yükü)
- Maks. Alan sayısı kanal başına çıkış akımı 0,5 A
- Kısa devre korumalı çıkışlar ve ters polarite koruması
| Technical data | EL2004, ES2004 |
|---|---|
| Connection technology | 2-wire |
| Number of outputs | 4 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Load type | ohmic, inductive, lamp load |
| Distributed clocks | – |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | typ. < 2 A |
| Reverse voltage protection | yes |
| Breaking energy | < 150 mJ/channel |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus | typ. 100 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption power contacts | typ. 15 mA + load |
| Bit width in the process image | 4 outputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
