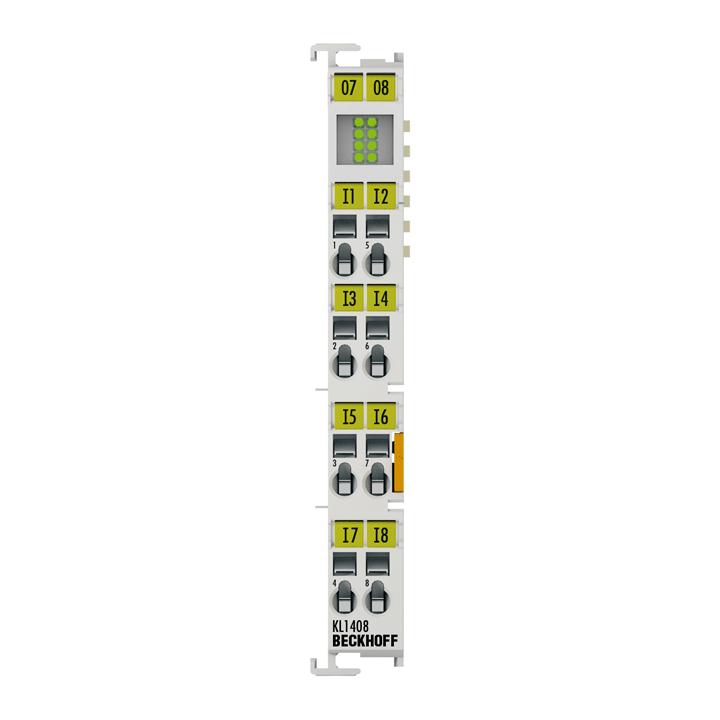

Beckhoff KL1408 8-Kanal Dijital Giriş Terminali 24 V DC
KL1408 dijital giriş terminali, proses seviyesinden ikili 24 V DC kontrol sinyallerini alır ve bunları elektriksel olarak izole edilmiş bir biçimde üst seviye otomasyon ünitesine iletir. Her Bus Terminali, sinyal durumlarını ışık yayan diyotlar aracılığıyla gösteren sekiz kanal içerir.
Özel özellikler:
- Giriş özelliği tipi 1/3
- 3 ms giriş filtresi sayesinde mekanik anahtarlar nedeniyle sıçrama olmaz
| Technical data | KL1408, KS1408 |
|---|---|
| Connection technology | 1-wire |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 8 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| "0” signal voltage | -3…+5 V (EN 61131-2, type 1/3) |
| "1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| "0” signal current | 0…1.5 mA |
| "1” signal current | 2.0…2.5 mA |
| Input filter | typ. 3.0 ms |
| Current consumption K-bus | typ. 5 mA |
| Current consumption power contacts | typ. 2 mA + load |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 8 inputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
