Euchner C-R08F06-06X014PV05,0-ES-103556 Bağlantı Kablosu
0 - Yorum
Kategori
Marka
Stok Kodu
273176
Garanti Süresi
24 Ay
Fiyat
94,29 EUR + KDV
* 449,98 TL den başlayan taksitlerle!
5.509,94 TL

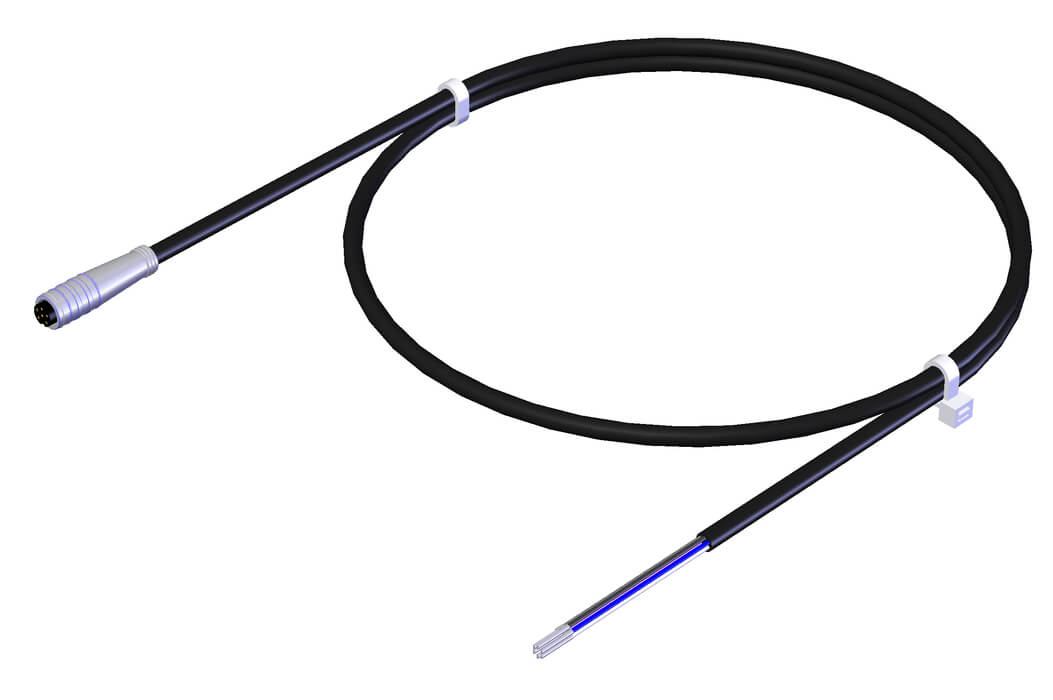

Euchner C-R08F06-06X014PV05,0-ES-103556
CES-AP-C.2 ... için M8 fiş konnektörlü bağlantı kabloları
CES-AP-C.2 -... için bağlantı kablosu
Dişi fiş, 6 pimli
geçmeli
PVC kablo, düz
Kablo uzunluğu 5 m
Uçan kurşunla
Mechanical values and environment
| Cable ambient temperature (dynamic) | 0 ... +70 °C |
| Cable ambient temperature (static) | -30 ... +70 °C |
| Dynamic bending radius | 10 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Sheath material | PVC |
| Conductor insulation material | PVC |
| Fire behavior | According to VDE 0472 |
| Drag chain suitability | No |
| UV resistance | Largely according to VDE0472 |
| Number of conductors | 6 |
| Type of cable | straight |
| Cable length | 5 m |
| Cable diameter | |
| Approx. | 4,5 mm |
| Conductor cross-section | 0.14 mm² |
| Conductor identification | Color code |
| Sheath color | gray |
| Connection 1 | |
| Degree of protection | IP67 |
| Insertion cycles | 100 |
| Connection | Plug connector Ø8 |
| Connection type | Female plug |
| Cable outlet | straight |
| Number of pins | 6 |
| Plug lock | Snap-on |
| Plug housing material | TPU |
| Connection 2 | |
| Conductor end | Cable end sleeve |
| Connection | Flying lead |
Electrical connection ratings
| Rated voltage | 30 V |
| Specific cable resistance | 150 Ω/km |
| Specific inductance | 0,65 mH/km |
| Specific capacitance | 120 nF/km |
| Connection 1 | |
| Degree of contamination according to EN 60664-1 | 3 |
