Euchner CEM-A-LE05K-S2 094800
0 - Yorum
Kategori
Marka
Stok Kodu
273086
Garanti Süresi
24 Ay
Fiyat
456,68 EUR + KDV
* 2.179,31 TL den başlayan taksitlerle!
26.685,42 TL

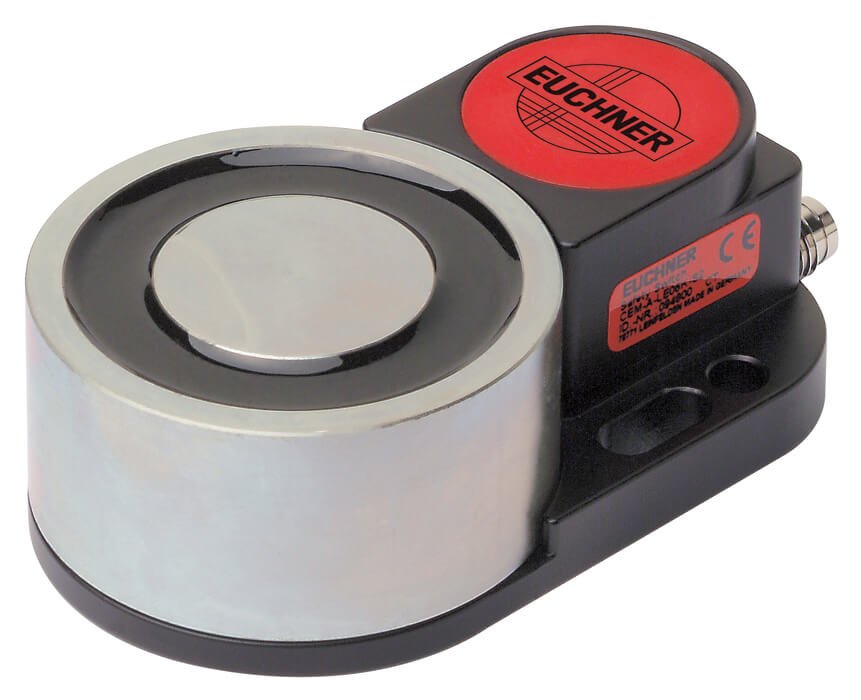

Euchner CEM-A-LE05K-S2 094800
Okuma kafası CEM-A-LE05 ... koruma kilitlemeli, koruma kilidi izlemesiz koruma kilitli
Koruma kilidi izlemesiz kapalı tutma özellikli okuma kafası
Kilitleme kuvveti 650 N
Remanence ile
EN ISO 13849-1'e göre kategori 4'e kadar
İki M5x16 emniyet vidası dahildir
Approach direction
Typical actuating range
Note assured release distance sar = 20 mm for internal component failure. Safety outputs are reliably switched off.
Approvals
Mechanical values and environment
| Material | |
| Read head | Plastic (PPS) |
| Solenoid | Steel, nickel-plated |
| Housing material | |
| Housing | Die-cast aluminum |
| Weight | |
| Net | 0,3 kg |
| Ambient temperature | -25 ... 50 °C |
| Degree of protection | IP67 |
| Mechanical life | |
| In case of use as door stop, and 1 Joule impact energy | 1 x 106 |
| Installation orientation | Any |
| Switching frequency | |
| Solenoid | max.1 Hz |
| Connection | |
| X3, read head | Plug connector M8x1, 3-pin male (with snap-action / screw terminal) |
| X1, solenoid (yellow LED integrated in the plug) | Plug connector M8x1, 4-pin male (with snap-action / screw terminal) |
| Cable length | max.25 m |
| Guard locking principle | Open-circuit current principle |
| Locking force F | |
| (Not monitored, in axial direction) at UCM≥24V | 650 N |
| Adhesive force | |
| due to remanence | 10 N -25% ... +25% |
Electrical connection ratings
| Operating voltage DC | |
| UCM | 24 V DC -15% ... 10% |
| Current consumption | |
| UB | 100 mA |
| Connection rating | 2,5 W |
| Solenoid duty cycle | 100 % |
Work area
| Switching hysteresis | |
| With center offset m=0 | 0,7 mm |
| Assured release distance Sar | max.20 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.2 mm |
| Center offset | -2,5 ... +2,5 mm |
