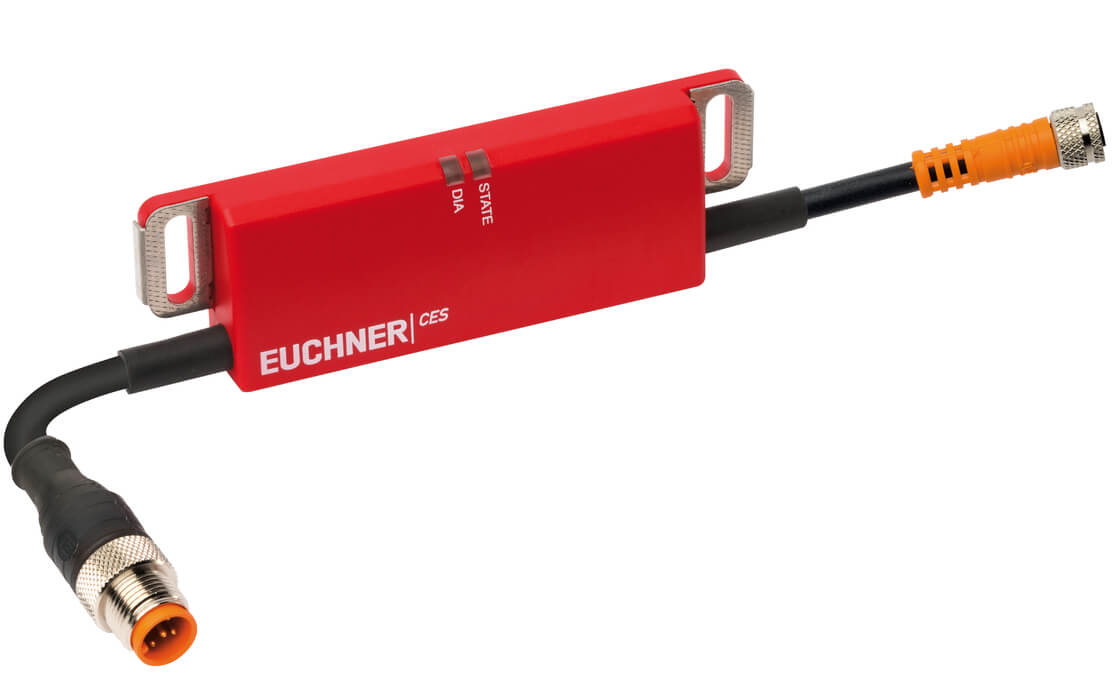

Euchner CES-FD-AP-U-01-USI-119865 Saha Değerlendirme Birimi
0 - Yorum
Kategori
Marka
Stok Kodu
273264
Garanti Süresi
24 Ay
Fiyat
535,88 EUR + KDV
* 6.486,61 TL den başlayan taksitlerle!
23.792,87 TL
Euchner CES-FD-AP-U-01-USI-119865 Saha Değerlendirme Birimi
Sahadaki sinyallerin değerlendirilmesi
CES okuma kafalarının bağlantısı
ET200'lere ve ET200pro'ya bağlantı
Tanıdık EUCHNER AP arayüzü
Unicode
Kısa devre izleme
Anahtar, FO1A / FO1B çıkış hatlarında kendi saat sinyalini üretir. Kontrol sistemlerine ve rölelere bağlanırken bu hususa dikkat edin.
EN ISO 13849-1'e göre kategori
Aşağıdakiler için uygun dahili izleme ile yedekli olarak tasarlanmış iki yarı iletken çıkışı (güvenlik çıkışları) sayesinde:
EN ISO 13849-1'e göre Kategori 4 / PL e
Önemli: EN ISO 13849-1'e göre belirtilen kategoriye ulaşmak için, her iki güvenlik çıkışının (F01A ve F01B) her zaman değerlendirilmesi gerekir.
LED göstergesi
DURUM Durum LED'i
DIA Teşhis LED'i
Connection for control system
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
 |
1 |
UB |
Power supply, DC 24 V |
BN |
|
2 |
FO1A |
Safety output, channel 1 |
WH |
|
|
3 |
0V |
Ground, DC 0 V |
BU |
|
|
4 |
FO1B |
Safety output, channel 2 |
BK |
|
|
5 |
- |
n.c. |
GY |
Connection for read head
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
 |
1 |
H1 |
Data line |
BN |
|
3 |
H2 |
Data line |
WH |
|
|
4 |
SH |
Shield |
- |
Approvals
Mechanical values and environment
| Cable ambient temperature (dynamic) | -5 ... 65 °C |
| Cable ambient temperature (static) | -20 ... 65 °C |
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Housing material | |
| Housing | Plastic, PBT |
| Weight | |
| Net | 0,096 kg |
| Degree of protection | IP67 |
| Installation orientation | Any |
| Tightening torque | max.1 Nm |
| Ready delay | 1 s |
| Switching frequency | max.1 Hz |
| Connection | Connection cable PUR with plug connector M12 5-pin, pin 5 not used |
Electrical connection ratings
| Operating voltage DC | |
| UB(PELV, see operating instructions) (reverse polarity protected, regulated, residual ripple < 5%) | 24 V DC 15% ... 15% |
| Current consumption | max.45 mA |
| Fusing | |
| External (operating voltage) | 0,25 ... 8 A |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Turn-on time | |
| Safety outputs | max.400 ms |
| Safety class | III |
| Risk time according to EN 60947-5-3 | max.260 ms |
| Safety outputs FO1A / FO1B | |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| per safety output | 1 ... 150 mA |
| Output voltage | |
| HIGH U(FO1A) / U(FO1B) | UB-1,5V ... UB V DC |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | DC-13 24V 150mA |
| Off-state current Ir | max.0,25 mA |
| Discrepancy time | max.10 ms |
Work area
| Repeat accuracy R | |
| According to EN 60947-5-2 | ≤ 10 |
Other
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.5 x 10-9 |
| Mission time | 20 |
In combination with Read head CES-A-LMN-SC and Actuator CES-A-BMB
Actuating range
| Operating distance | 5 mm |
| Assured release distance Sar | max.10 mm |
| Assured operating distance Sao | min.3,4 mm |
| Switching hysteresis | min.0,05 mm |
