Euchner CKS-A-L1B-SC-113130 Anahtar Adaptörü
0 - Yorum
Kategori
Marka
Stok Kodu
273173
Garanti Süresi
24 Ay
Fiyat
376,76 EUR + KDV
* 1.797,93 TL den başlayan taksitlerle!
22.015,52 TL

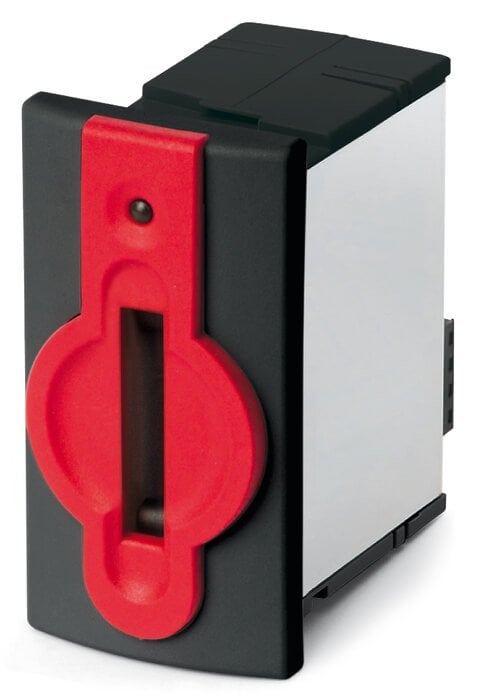

Euchner CKS-A-L1B-SC-113130 Anahtar Adaptörü
- Entegre CES okuma kafasına sahip anahtar adaptörü
- Bir CES-AZ değerlendirme ünitesine veya CES-FD saha ünitesine bağlantı için uygundur
- M8 fiş konnektörü üzerinden basit bağlantı
- Ön kapak: kırmızı
- Yüksek koruma derecesi IP67
- LED göstergesi
Önemli: Anahtarlar ayrıca sipariş edilmelidir!
Approvals
Mechanical values and environment
| Mounting cut-out | |
| according to DIN EN 61554 | 33x68 mm |
| Housing material | |
| Housing | PA6-GF30 |
| Weight | |
| Net | 0,13 kg |
| Ambient temperature | -20 ... 70 °C |
| Degree of protection | |
| in mounted condition (only access side) | IP65/IP67 |
| Mounting method | Fastening using screw clamp elements on rear |
| Installation orientation | On the front |
| Tightening torque | |
| Fixing screws in the clamping pieces on the rear | 0,25 ... 0,35 Nm |
| Switching frequency | See operating instructions for the related evaluation unit |
| Connection | M8 plug connector, 3-pin |
| Cable length | |
| Maximum allowed | max.25 m |
| Method of operation | Inductive |
Electrical connection ratings
| Power supply | Via evaluation unit |
| LED indicator | White: valid actuator detected |
Work area
| Switching hysteresis | |
| Referred to the stop for the inserted actuator | 1 mm |
| Assured release distance Sar | |
| Referred to the stop for the inserted actuator | max.30 mm |
| Assured operating distance Sao | |
| Referred to the stop for the inserted actuator | min.2 mm |
