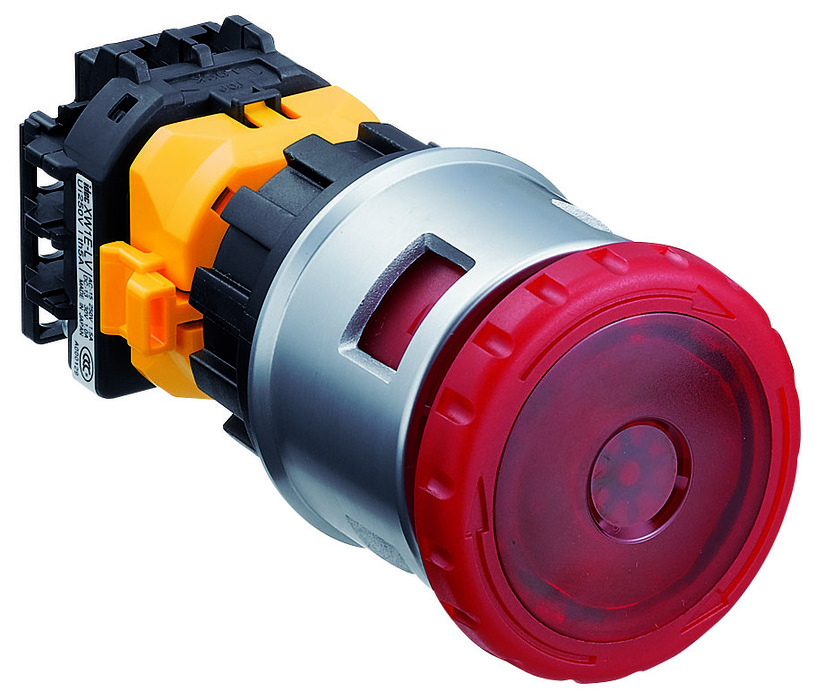

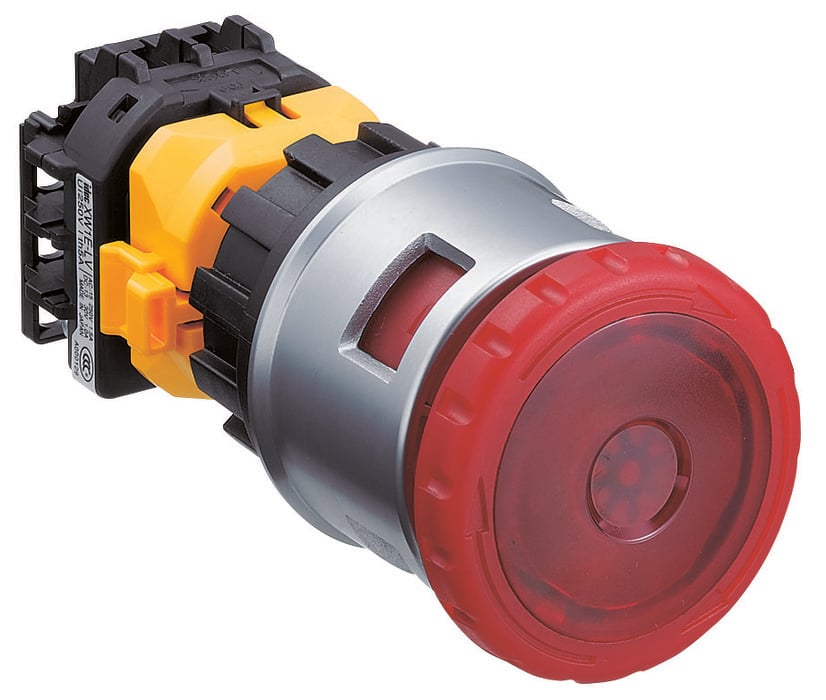

Euchner ES-XN4E-LL412Q4MFR 105016 Acil Durdurum Butonu
0 - Yorum
Kategori
Marka
Stok Kodu
272987
Garanti Süresi
24 Ay
Fiyat
280,19 EUR + KDV
* 1.337,06 TL den başlayan taksitlerle!
16.372,20 TL
Euchner ES-XN4E-LL412Q4MFR 105016 Acil Durdurum Butonu ES-XN Yerleşik Cihazlar 30 mm
Düğme başlığı kırmızı 44 mm ø
Kontak bloğu izleme
Asma kilit kullanılarak kilitlenebilir
Çevirerek sıfırla
Aydınlatma ile
Anahtarlama elemanı
2 NC + 1 YOK
Approvals
Mechanical values and environment
| Material | |
| Housing | Polycarbonate |
| Button | Fiber glass reinforced thermoplastic |
| Ambient temperature | -25 ... 55 °C |
| Degree of protection | IP20 |
| Mechanical life | 0,25 x 106 |
| Contact material | Silver alloy, gold flashed |
| Mounting method | IEC 947-5-1 D30 |
| Number of positively driven contacts | 2 |
| Number of NO contacts | 1 |
| Connection | Screw terminal |
Electrical connection ratings
| Operating current | 15 mA |
| Operating voltage | |
| AC/DC | 24 V -10% ... +10% V |
| Thermal rated current Ith | 1 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 1.5 A 250 V |
| DC-13 | 1A 30V |
| AC-14 | 0.3 A 250 V |
| Rated insulation voltage Ui | 250 V |
| Switching current | |
| Min. at 24V | 10 mA |
Other
| Additional feature | |
| Reset by turning | |
| Button head Ø 44 mm | |
| Can be locked using padlock | |
| Contact block monitoring | |
| Color | |
| Actuating button | Red transparent |
| Bottom part | Yellow |
| Lighting | Yes |
Reliability values according to EN ISO 13849-1
| B10D | 0,1 x 106 |
